Connect DataGrip to Tinybird

DataGrip can connect to Tinybird using the ClickHouse® database driver, taking advantage of Tinybird's ClickHouse® HTTP protocol compatibility. This enables you to use DataGrip's advanced SQL development features, including intelligent code completion, on-the-fly error detection, and powerful refactoring capabilities with your Tinybird data.

The ClickHouse® connection to Tinybird is read-only. You can use it to query and analyze data from your Tinybird data sources, but you cannot modify data through this connection.

Prerequisites

  • DataGrip IDE (part of JetBrains IDEs)
  • A Tinybird workspace with data sources
  • A Tinybird Auth Token with read permissions for the workspace data sources

Create a new data source

  1. Open DataGrip and click the + icon in the Database Explorer
  2. Select Data Source > ClickHouse
  3. If prompted, install or update the ClickHouse driver

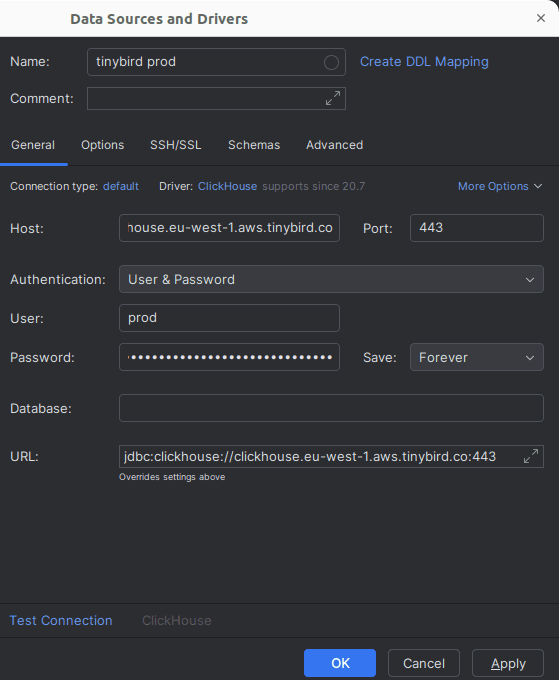

General settings

Configure the main connection parameters in the General tab:

Host: clickhouse.tinybird.co
Port: 443  # For HTTPS connections
User: <WORKSPACE_NAME>  # Not used for authentication, for identification only
Password: <TOKEN>  # Your Tinybird Auth Token

See the list of ClickHouse hosts to find the correct one for your region.

DataGrip configuration
DataGrip configuration

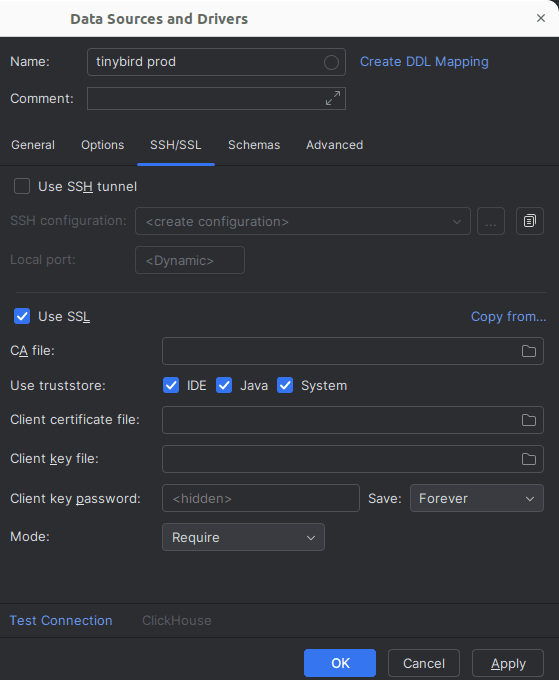

SSH/SSL settings

  1. Click the SSH/SSL tab
  2. Check Use SSL
  3. Leave all other SSL settings at their defaults (no custom certificates required)
DataGrip configuration
DataGrip configuration

Test and save

  1. Test Connection: Click Test Connection to verify the setup
  2. Apply: Click Apply and then OK to save the connection

Explore your data

Once connected, you can:

  1. Browse databases: Expand your data source to see available databases:

    • Your workspace database (<WORKSPACE_NAME>)
    • Service data sources (tinybird, organization)
    • System tables (system)

  2. View tables and schemas: Navigate through your Data Sources and examine their structure

  3. Execute queries: Right-click on your data source and select New > Query Console to start writing SQL

Test the connection

Create a simple query to verify your connection:

  1. Open a new Query Console for your Tinybird data source
  2. Write a simple query to test the connection:
SELECT *
FROM system.tables
WHERE database = '<WORKSPACE_NAME>'
LIMIT 10

Replace <WORKSPACE_NAME> with your actual workspace name. If the connection is working, you should see a list of your Data Sources.
