Connect Hex to Tinybird

Hex can connect to Tinybird using the ClickHouse® data source, taking advantage of Tinybird's ClickHouse® HTTP protocol compatibility. This enables you to use Tinybird data in Hex's collaborative analytics platform for notebooks, dashboards, and data applications.

The ClickHouse® connection to Tinybird is read-only. You can use it to analyze and visualize data from your Tinybird data sources, but you cannot modify data through this connection.

Prerequisites

  • A Tinybird workspace with data sources
  • A Tinybird Auth Token with read permissions for the workspace data sources

Add Tinybird as a data source

  1. Navigate to Data browser: In your Hex project, go to Data browser in the left sidebar
  2. Add a new connection: In the Warehouse tab click Add data connection
  3. Select ClickHouse®: Choose ClickHouse® from the list of available data connection
  4. Configure the connection with these settings:

Connection configuration

Name: Tinybird Production  # Choose a descriptive name
Host: clickhouse.<REGION>.tinybird.co  # Replace <REGION> with your region
Port: 443

Authentication settings

Username: <WORKSPACE_NAME>  # not used for auth, helps you identify the connection
Password: <TOKEN>  # Your Tinybird Auth Token
Enables SSL for ClickHouse: yes
  1. Save the connection: Click Create connection to save the data source

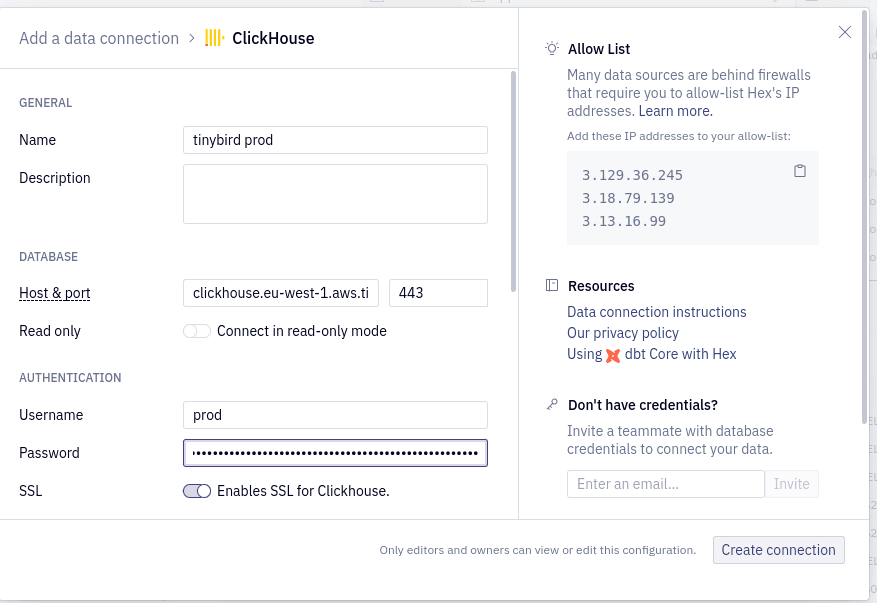

Hex ClickHouse® connection configuration
Hex ClickHouse® connection configuration

Test the connection

Once configured, test your connection by creating a simple query:

  1. Add SQL query cell to your Notebook
  2. Select your newly created data connection
  3. Write a simple query to test the connection

If the connection is working, you should see the result.
