Recently, we introduced two new pull requests to ClickHouse® that will be available with ClickHouse® 24.4. These changes dramatically improve ClickHouse join performance across many production scenarios, in some cases increasing query speed by multiple orders of magnitude.

PR #1: JOIN predicate pushdown using equivalence classes

Predicate pushdown is a query optimization technique used in database management systems to significantly reduce the amount of data a query processes.

In ClickHouse®, as in most other SQL databases, query execution is divided into multiple stages:

1. Query parsing.
2. Query analysis.
3. Build a logical query plan.
4. Optimize logical query plan.
5. Build a physical query plan.
6. Optimize physical query plan.
7. Execute physical query plan.

In most databases, the logical query plan is a tree where each node is a relational algebra operator, and the leaves of the query plan tree are data sources, usually table scans.

It's convenient to represent the steps of a query plan with relational algebra. The relational algebra and its operators are well-studied, and many known optimizations exist.

One such optimization is predicate pushdown.

Predicate pushdown improves query performance by pushing predicates closer to operators that scan data. Early filtering helps subsequent steps of a query plan to process much less data, improve index usage, and - in distributed databases - significantly reduce the amount of data transfer between nodes.

A predicate pushdown optimization can be applied to most relational algebra operators, such as projections, aggregations, sorts, and unions. But the most important optimization is the JOIN step predicate pushdown, simply because JOIN operators typically produce huge amounts of data. Understanding ClickHouse joins is essential for building high-performance analytics.

It's important to note that for some operators it is safe to push only part of the predicate. In such a scenario, the predicate needs to be split into parts. In databases, it makes sense to store predicates in conjunctive normal form, applying each predicate pushdown optimization separately for each conjunction, if necessary.

Here's an example:

Let's look at the ClickHouse® logical query plan for this query:

In this example, the predicate is pushed to the LEFT side of the JOIN. Note that I added SETTINGS optimize_move_to_prewhere = 0, because otherwise that Filter step would be converted to PREWHERE for the left table. For more details on this optimization, refer to the ClickHouse prewhere documentation.

Before ClickHouse® 24.4, a simple version of predicate pushdown optimization was used for JOINs. Notably, it did not consider equivalence classes of JOINed columns (that is, equivalent columns after the JOIN is performed).

In PR #61216, we introduced a more complex analysis of predicates that uses equivalence classes and can transform predicates that are applied to one side of JOIN to predicates that can be applied to another side of JOIN. In addition, the predicate will be split into different parts and only safe parts will be pushed down, if necessary.

Consider the example:

In this example, we know that the id column from test_table_1 is equivalent to the id column of test_table_2, and we can transform the test_table_1.id = 5 predicate to test_table_2.id = 5 and push it to the right table.

Filter pushdown optimization for different JOIN types has different logic:

1. For INNER JOINs we can push all predicates to both sides of the JOIN. We can also transform predicates that use only equivalent columns from the LEFT side to the RIGHT side and vice versa.
2. For LEFT/RIGHT JOINs we can push conditions that use only columns from the LEFT/RIGHT table to the LEFT/RIGHT JOIN side. We can also transform predicates that use only equivalent columns from the LEFT side to the RIGHT side for LEFT JOINs and from the RIGHT side to the LEFT side for RIGHT JOINs.

Let's look at the query plan after this optimization was implemented:

Now, the predicate is pushed to both the LEFT and RIGHT sides of the JOIN. We also see improvements in query performance of INNER, LEFT and RIGHT JOINs in absolute numbers:

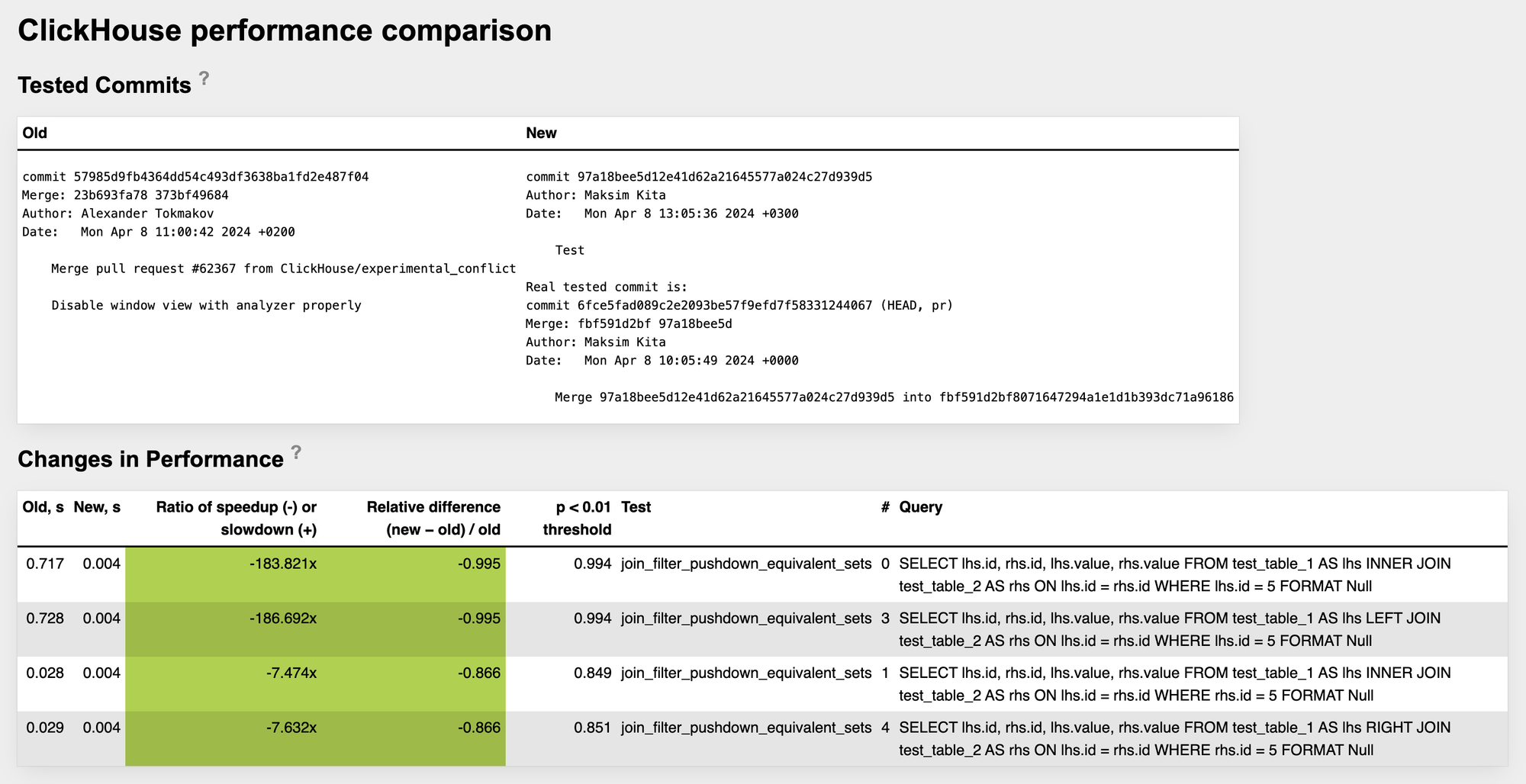

Here are the complete results of ClickHouse® performance tests, with the highlights shown below.

This optimization additionally resolves several related, preexisting issues in ClickHouse®. Here are some examples:

1. #10913
2. #45242
3. #55054
4. #55058
5. #26268

PR #2: Automatically converting OUTER to INNER JOIN

We introduced another change that allows ClickHouse® to automatically convert an OUTER JOIN to an INNER JOIN if the predicate after JOIN filters all non-joined rows with default values.

This technique allows for additional optimization opportunities because after the JOIN is converted from OUTER to INNER, we can apply predicate pushdown in more scenarios.

Using the same table setup as the previous optimization...

Here's the ClickHouse® logical query plan:

In this example, we know the predicate test_table_2.id = 5 will always filter non-joined rows from the LEFT JOIN with default values.

In #62907, we introduced an analysis that can automatically convert an OUTER JOIN to an INNER JOIN. During that analysis, we can understand that the predicate after an OUTER JOIN will always filter non-joined rows with default values. In that case, we can convert an OUTER JOIN to INNER JOIN.

We do this by trying to perform constant folding of the predicate that is executed after the OUTER JOIN, where we replace all RIGHT/LEFT side columns for LEFT/RIGHT JOIN with constant default values columns. If the result of predicate constant folding is constant False or NULL we can convert the OUTER JOIN to an INNER JOIN.

Here's the query plan after this optimization was implemented:

Here, the LEFT JOIN is changed to an INNER JOIN. We can see the Filter step is pushed down because for an INNER JOIN it is safe to push test_table_2.id = 5 to both sides of the JOIN.

We also see improvements in initial query performance after the optimization was applied:

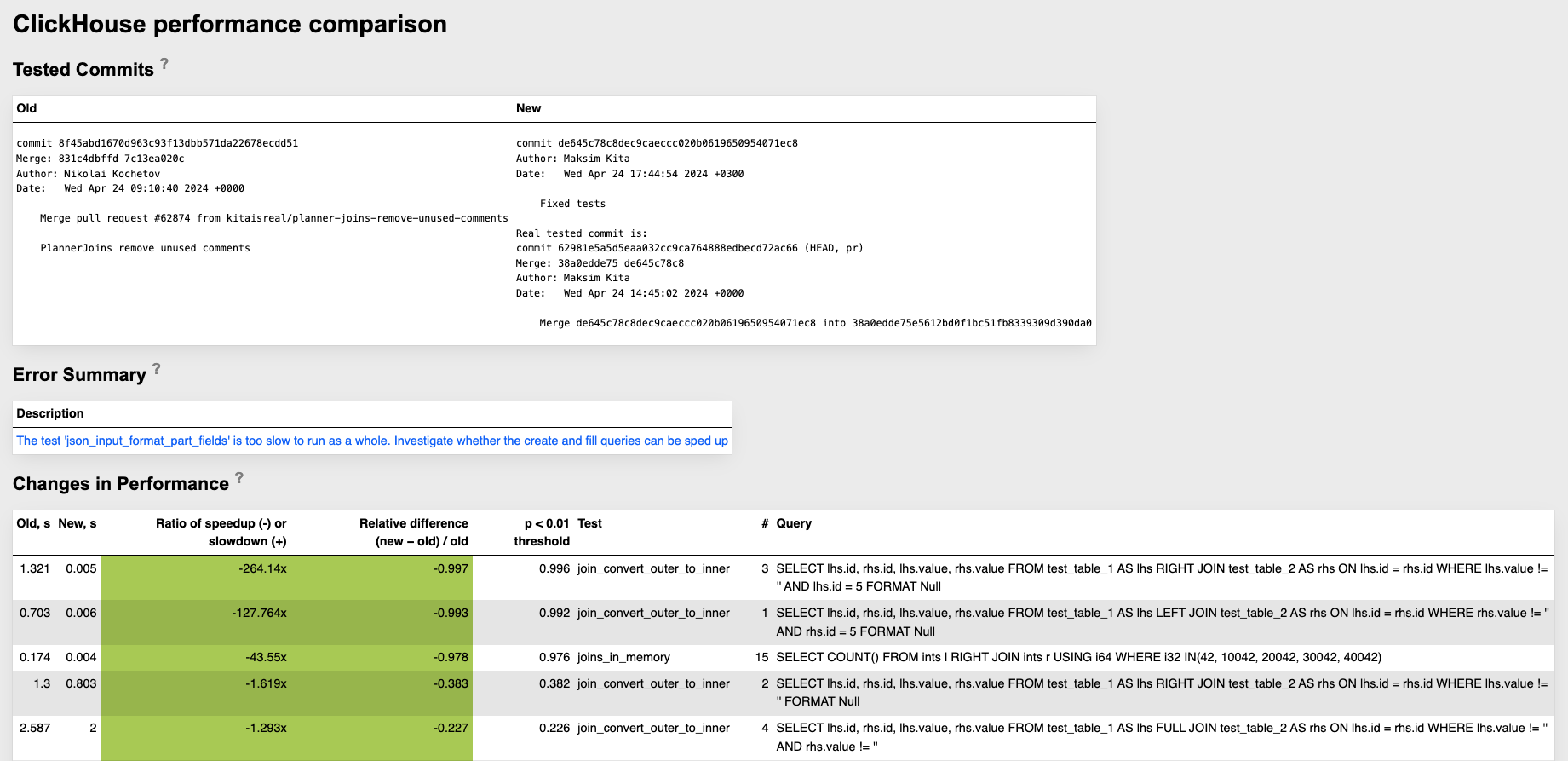

In the ClickHouse® performance test results we see huge improvements for INNER, LEFT, and RIGHT JOINs:

Conclusion

In databases, You can achieve significant performance improvement by using high-level logical optimizations on top of the query plan. Such optimizations work well together and can be combined to provide even better performance improvements, such as we have shown here.

These two PRs, which are available in ClickHouse® 24.4, have dramatically improved ClickHouse join performance across many production scenarios, and will markedly improve performance for ClickHouse® users. For additional optimization techniques, consult the ClickHouse prewhere documentation and other query tuning resources.
